NEW WINCH ON CARROUSEL TUG

Winch drum now fully operational on carrousel tug !

Winch is equipped with two drum parts:

• Upper part is centrical for storage
• Lower part is excentrical for hold with minimum arm

Particulars

• Wire ...... .......36 mm (steel)
• Capacity.........75 m (on drum)
• Pull................. 5 tons (first line)
• Hold................ 140 tons (excentrical lower drum)
• Hold...................40 tons (centrical upper drum)

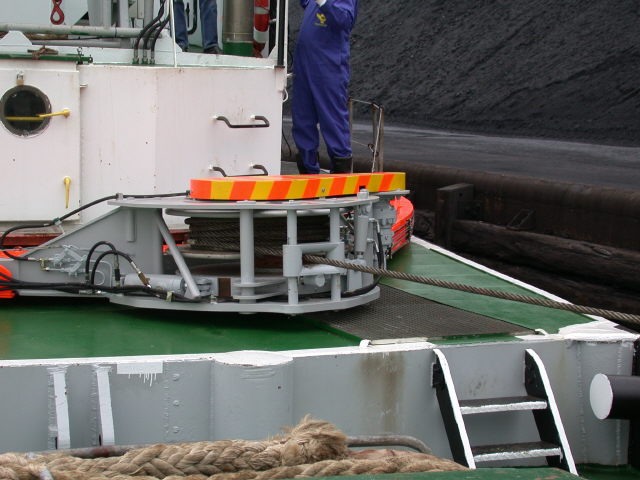

Winch front view

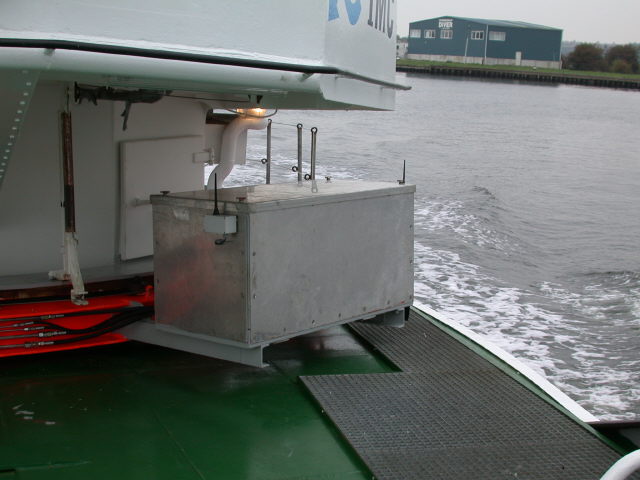

Powerpack box on opposite side of the carrousel

Winch cable from upper drum

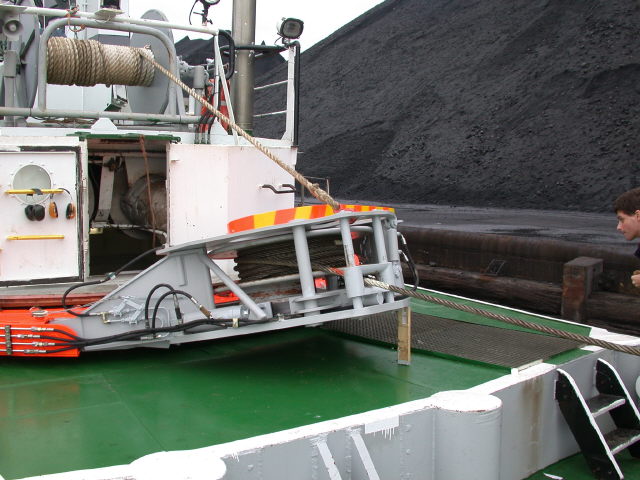

Lifting angle of winch (20 deg upwards)

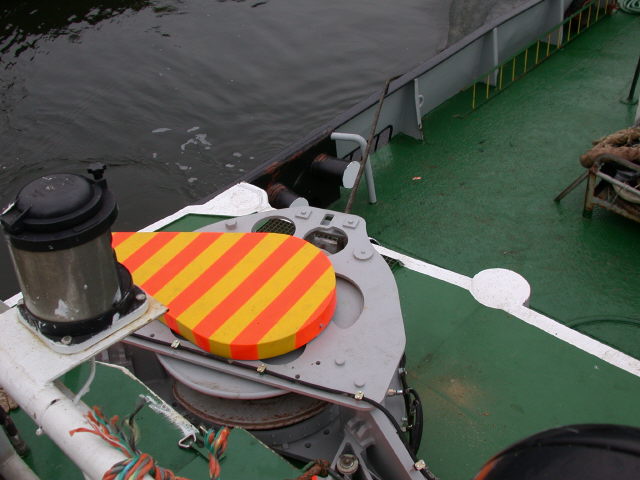

Winch top view

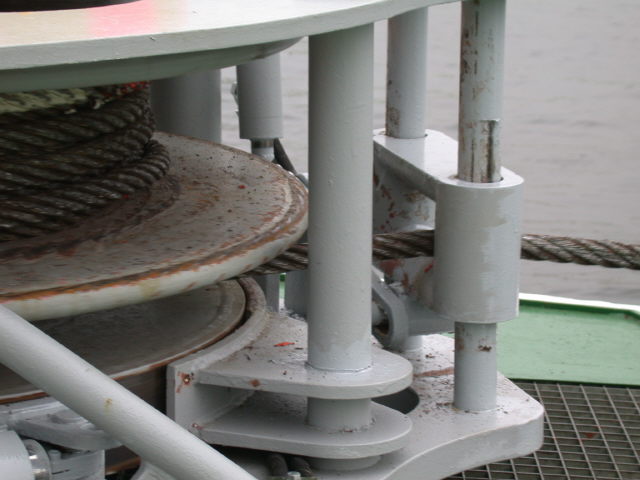

Winch close up view (cable from excentrical lower drum)

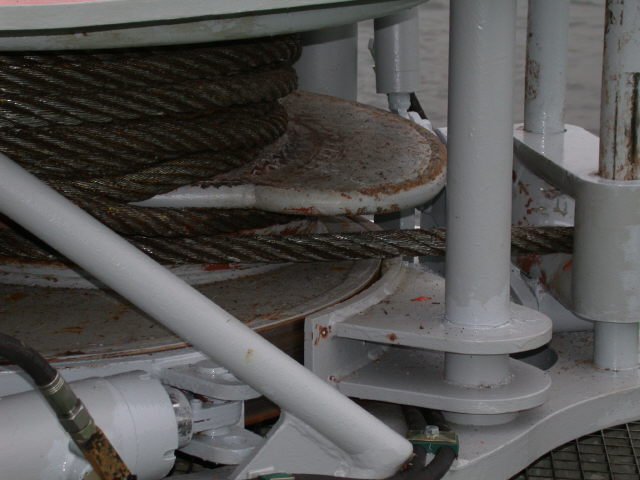

Winch close up cable from upper drum to lower drum

Full pull at bollard

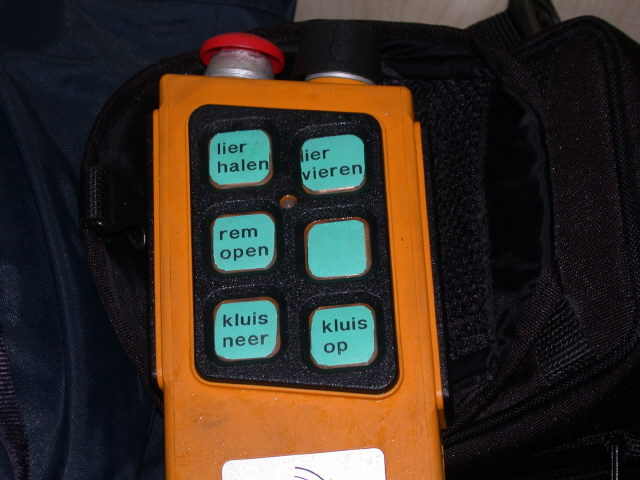

Winch is radio controlled with hand set (Dutch)
